FAGOR FED DRYERS

Download Spec Sheet 50lb

Download Spec Sheet 75lb

Download Spec Sheet 170lb

Standard Features:

Self-diagnostic microprocessor Easy-to-clean lint filter
Available in gas, steam and electric heat

Optional Features:

S.A.F.E. (Sensor Activated Fire Extinguishing System

A Design Built to Last

The bearings are permanently lubricated on the motor and drive system. There are no chain used; rather, a V-belts and pulleys is used for smooth, quiet operation.

Steel Door With Gasketless Door Glass

The doors is one solid piece of steel with gasketless glass. This type of construction eliminates the wear and tear on rubber gaskets.

Multilingual Control Microprocessor

A design, easy-to-read LED screens and our user friendly multilingual interface positions our dryers as one of the leaders in the laundry industry.

FED-50 FED-50

  Unit FED-50
FED SPECIFICATIONS
Tumbler Capacity(dry weight) LB 50
Tumbler Diameter Inch 32-3/4”
Tumbler Depth Inch 37-1/2”
Tumble Volume Cu. Ft. 18.30
Tumble/Drive Motor Hp ¾ hp / ½ hp
Blower/Fan Motor Hp –/1/2 hp*
Door Opening (Diameter) Inch 21-1/2”
Door Sill Height Inch 33-1/8”
S.A.F.E Water Connection Inch ¾”
GAS MODEL
Voltage Available 120-240V 1,3 phase 60HZ
Approx. Net Weight Lb 651
Approx. Shipping Weight Lb 700
Airflow Cfm 750
Exhaust Connection(diameter) Inch 8”
Compressed Air Connection N/A N/A
Inlet Pipe Connection Inch N/A
Electrical Model
Voltage Available 208-575V 1,3phase 2,3,4w 50/60hz
Approximate Net Weight Lb 651
Approximate Ship Weight Lb 700
Airflow CFM 750
Exhaust Connection(Diameter) Inch 8”
Compressed Air Connection
Compressed Air Volume
Oven Size 20KW 68,200Btu/hr 17,200Kcal/hr
  24KW 81,900Btu/hr 20,600Kcal/hr
  30KW 102,400Btu/hr 17,200Kcal/hr
Steam Model
Voltage Available 120-575V 1,3phase 2,3,4w 50/60Hz
Approximate Net Weight Lb 683
Approximate Shipping Weight Lb 733
Airflow CFM 1,200
Steam Consumption Lb/hr 142
Operating Steam Pressure Psi 125 psi Max
Exhaust Connection Inch 8”
Boiler HP normal load Bhp 4.1
Standard Supply Connections Inch 1” N.P.T
Standard Return Connections Inch 1” N.P.T

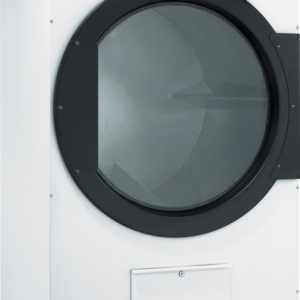

FED-75

  Unit FED-75
FED SPECIFICATIONS
Tumbler Capacity(dry weight) LB 75
Tumbler Diameter Inch 36 ¼”
Tumbler Depth Inch 36”
Tumble Volume Cu. Ft. 21.50
Tumble/Drive Motor Hp 1/1/2
Blower/Fan Motor Hp –/1*
Door Opening (Diameter) Inch 31-3/8”
Door Sill Height Inch 28”
S.A.F.E Water Connection Inch ¾”
GAS MODEL
Voltage Available 120-575V 1,3 phase 2,3,4w 50/60HZ
Approx. Net Weight Lb 721
Approx. Shipping Weight Lb 773
Airflow Cfm 1,000
Exhaust Connection(diameter) Inch 8”
Compressed Air Connection N/A N/A
Inlet Pipe Connection Inch ¾”
Electrical Model
Voltage Available 208-575V 1,3phase 2,3,4w 50/60hz
Approximate Net Weight Lb 721
Approximate Ship Weight Lb 773
Airflow CFM 1,000
Exhaust Connection(Diameter) Inch 8”
Compressed Air Connection
Compressed Air Volume
Oven Size 30KW 120,400Btu/hr 25,800Kcal/hr
Steam Model
Voltage Available 120-575V 1,3phase 2,3,4w 50/60Hz
Approximate Net Weight Lb 816
Approximate Shipping Weight Lb 868
Airflow CFM 1,200
Steam Consumption Lb/hr 275
Operating Steam Pressure Psi 125 psi Max
Exhaust Connection Inch 8”
Compressed Air Connection Inch 1/8”
Compressed Air Volume Cfh 0.75
Boiler HP normal load Bhp 7.2
Standard Supply Connections Inch 1-1/4” N.P.T
Standard Return Connections Inch 1-1/4” N.P.T




FED-170

  Unit FED-170
FED SPECIFICATIONS
Tumbler Capacity(dry weight) LB 170
Tumbler Diameter Inch 51-1/2”
Tumbler Depth Inch 42-1/2”
Tumble Volume Cu. Ft. 51.20
Tumble/Drive Motor Hp 1hp
Blower/Fan Motor Hp 7-1/2 hp
Door Opening (Diameter) Inch 31-3/8”
Door Sill Height Inch 33-1/8”
S.A.F.E Water Connection Inch ¾”
GAS MODEL
Voltage Available 208-575V 3phase 3,4w 50/60Hz
Approx. Net Weight Lb 2103
Approx. Shipping Weight Lb 2269
Airflow Cfm 3,700
Exhaust Connection(diameter) Inch 18”
Compressed Air Connection Inch ¼”
Inlet Pipe Connection Inch 1-1/2” M.N.P.T
Electrical Model
Voltage Available 308-480V 3phase 3,4w 50/60Hz
Approximate Net Weight Lb 2103
Approximate Ship Weight Lb 2269
Airflow CFM 3,700
Exhaust Connection(Diameter) Inch 18”
Compressed Air Connection Inch ¼” Quick Connect
Compressed Air Volume
Oven Size 126KW 429,900Btu/hr 108,300Kcal/hr
Steam Model
Voltage Available 208-480V 3phase 3,4w 50/60Hz
Approximate Net Weight Lb 2259
Approximate Shipping Weight Lb 2425
Airflow CFM 4,400
Steam Consumption Lb/hr 520
Operating Steam Pressure Psi 125 psi Max
Exhaust Connection Inch 20”
Boiler HP normal load Bhp 14.5
Standard Supply Connections Inch 1-1/2” N.P.T
Standard Return Connections Inch 1-1/2” N.P.T
