FAGOR FWS HARD MOUNT WASHERS

on-premises-washer-Fagor-FWR-60-v-02

FWS-25-30-40-60-80-135 Normal Spin Washer

200 G-Force

Download Spec Sheet 25lb – 30lb – 40lb

Download Spec Sheet 60lb – 80lb

Download Spec Sheet 135lb

Require anchoring to the floor.

· Drum and jacket in AISI-304 stainless steel.

· Unit exterior manufactured in sandwich board, colour grey, stainless steel appearance, easy

to clean, and which does not reflect fingerprints.

· Detergent tray with 4 compartments.

· 8 signals for automatic liquid dosing, programmable in time and delay.

6 extra signals available optionally.

· 3 standard water inlets.

· Variable-frequency drive (standard 50-60 Hz). Balancing systems controlled by the same drive.

· New second-generation TOUCH PLUS programmer with 7” touch screen in colour, 37 available languages and which lets you create an indefinite number of programs (29 pre-set), as well as play videos.

· Allows programming, importing and exporting of programs and software updates via USB.

· Traceability as standard: the whole wash process (temperatures, water levels) is stored on the washer and is extractable to a PC by USB memory.

· The programmer includes the characteristics to create any Wet Cleaning program (modifiable water levels and washing speed).

· EFFICIENT MIX. These machines are equipped with an automatic water mixer (mixing different water temperatures) which provides energy savings and reduces washing times.

· BALANCE CONTROL.

Thanks to an advanced technological development, and by means of the inverter, the washers detect the imbalance at an early stage. This way the operation is much smoother, elongating components lifetime and reducing washing times, thus saving energy as well.

· MULTICHOICE INLET. All washers are equipped with a third water inlet as standard, which allows you to save filling time, or which can be used for decalcified water, ozone or recycled water.

· WET CLEANING. All washers incorporate the necessary features to use the WET CLEANING system as standard, avoiding investment in expensive applications to work with this advanced washing concept. This feature replaces most dry-cleaning washing systems, bringing maximum reduction in costs.

· MAINTENANCE KARE.

A simple and reliable design with easy-to-access mechanical parts that combines perfectly with the use of intelligent electronics. All components have been designed and manufactured with top quality and prestige, focusing on optimum accessibility for all points and components key to maintenance. Moreover, all the controls have been developed down to the finest detail: complete technical menus, fault self-diagnosis systems, alarms, restricted access areas, etc.

· OPTIMISED DRUM. This system has been developed to improve wash quality to the maximum and to do it in as short a time as possible. Through a series of perforations in the paddles of the drum, a water cascade effect is achieved which considerably increases the mechanical action inside the drum during operation and greatly reduces the amount of water needed for each wash. The effective design of the drum and tank with minimal spaces between them, allows the energy consumption necessary to heat the water, as well as the superfluous use of chemical products, to be reduced.

· OPTIMAL CONSUMPTION.

All washers are equipped with an efficient system by means of which you can indicate the load which is introduced in the machine. The washer automatically adapts the quantity of water and chemicals to be used for that load.

· “LOADING AID” system. Water inlet and spin control for loading the linen.

· The standard model can be converted to self-service by installing a pay station kit, coin mechanism kit or other payment system.RS-485 communication.

· Washers compatible with water recovery tanks.

· CE, WRAS and EAC product certifications. Optional ETL-certified version of the machine.

FWS-25 TP2 FWS-25 TP2

  Unit FWS 25 TP2
DRUM
Load Capacity 1:9 / 1:10 LB 24/22
Volume Cu. Ft 3.5
Depth In 24.4
Diameter In 13
General Data
Wash speed / Spin speed r.p.m 53/759
G Force – 200
Double Drain   No
Weighing System   No
SLUICE OPTION   Yes
DOOR
Height door centre In 22 / 12.2
Diameter In 14.68
POWER
Motor Hp 1.48
Heating elec. Mod. kW 8
Max. Electric Power kW 8.4
Max Steam & Hote Water power kW 1.48
Connections   Electric Steam/Hot Water
Voltage 230V – I + N N° x mm² / A 3×6 – 40 A 3×1.5 – 16 A
Voltage 230V – III N° x mm² / A 4×2.5 – 20 A N/A
Voltage 400V – III + N N° x mm² / A 5×1.5 – 16 A N/A
Steam Inlet Inch ½”
Maximum Steam Consumption Lbs/hr 15.5
Water inlet Inch ¾”
Grid Pressure Kg/cm² 2-4
Max water consumption * Gal/hr 16.24
Drain Inch 3”
Drain Capacity Gal/min 52.8
Dimensions/ With Packaging
Width / Width Inch 28.3 / 31.5
Depth / Depth Inch 26.9 / 39
Height / Height Inch 45.59 / 53.14
Net Weight / Gross Weight Inch 478 / 496
Gross Volume (with packing) Ft3 37.8

FWS-30 TP2

  Unit FWS 25 TP2
DRUM
Load Capacity 1:9 / 1:10 LB 31/29
Volume Cu. Ft 4.6
Depth In 24.4
Diameter In 16.92
General Data
Wash speed / Spin speed r.p.m 53/759
G Force – 200
Double Drain   Optional
Weighing System   No
SLUICE OPTION   Yes
DOOR
Height door centre In 22.44/12.2
Diameter In 14.68
POWER
Motor Hp 1.48
Heating elec. Mod. kW 12
Max. Electric Power kW 12.7
Max Steam & Hote Water power kW 1.48
Connections   Electric Steam/Hot Water
Voltage 230V – I + N N° x mm² / A 3×10 – 50 A 3×1.5 – 16 A
Voltage 230V – III N° x mm² / A 4×2.5 – 20 A N/A
Voltage 400V – III + N N° x mm² / A 5×1.5 – 16 A N/A
Steam Inlet Inch ½”
Maximum Steam Consumption Lbs/hr 18.8
Water inlet Inch ¾”
Grid Pressure Kg/cm² 2-4
Max water consumption * Gal/hr 21
Drain Inch 3”
Drain Capacity Gal/min 52.8
Dimensions/ With Packaging
Width / Width Inch 28.5 / 31.5
Depth / Depth Inch 32.67 / 39
Height / Height Inch 45.59 / 53.14
Net Weight / Gross Weight Inch 526 / 545
Gross Volume (with packing) Ft3 37.8



FWS-40 TP2

  Unit FWS 25 TP2
DRUM
Load Capacity 1:9 / 1:10 LB 44/42
Volume Cu. Ft 6
Depth In 27.55
Diameter In 18.50
General Data
Wash speed / Spin speed r.p.m 45/874
G Force – 200
Double Drain   Optional
Weighing System   No
SLUICE OPTION   Yes
DOOR
Height door centre In 25.78/13.70
Diameter In 18.11
POWER
Motor Hp 2.9
Heating elec. Mod. kW 16
Max. Electric Power kW 17.1
Max Steam & Hote Water power kW 2.9
Connections   Electric Steam/Hot Water
Voltage 230V – I + N N° x mm² / A 3×16 – 63 A 3×4 – 32 A
Voltage 230V – III N° x mm² / A 4×6 – 40 A N/A
Voltage 400V – III + N N° x mm² / A 5×4 – 32 A N/A
Steam Inlet Inch ½”
Maximum Steam Consumption Lbs/hr 26.5
Water inlet Inch ¾”
Grid Pressure Kg/cm² 2-4
Max water consumption * Gal/hr 31.35
Drain Inch 3”
Drain Capacity Gal/min 52.8
Dimensions/ With Packaging
Width / Width Inch 31/33
Depth / Depth Inch 33/39.76
Height / Height Inch 51.45/59
Net Weight / Gross Weight Inch 620/664
Gross Volume (with packing) Ft3 46



FWS-60 TP2

  Unit FWS 60 TP2
DRUM
Load Capacity 1:9 / 1:10 LB 62/55
Volume Cu. Ft 9
Depth In 30.3
Diameter In 20.87
General Data
Wash speed / Spin speed r.p.m 48/682
G Force – 200
Double Drain   Optional
Weighing System   No
SLUICE OPTION   Yes
DOOR
Height door centre In 27.56/15.75
Diameter In 18.15
POWER
Motor Hp 4
Heating elec. Mod. kW 24.1
Max. Electric Power kW 25.5
Max Steam & Hote Water power kW 4
Connections   Electric Steam/Hot Water
Voltage 230V – I + N N° x mm² / A N/A 3×4 – 20 A
Voltage 230V – III N° x mm² / A 4×16 – 63 A N/A
Voltage 400V – III + N N° x mm² / A 5×4 – 32 A N/A
Steam Inlet Inch ¾”
Maximum Steam Consumption Lbs/hr 33
Water inlet Inch ¾”
Grid Pressure Kg/cm² 2-4
Max water consumption * Gal/hr 46.52
Drain Inch 3”
Drain Capacity Gal/min 52.8
Dimensions/ With Packaging
Width / Width Inch 34.80/36.62
Depth / Depth Inch 39.80/45.28
Height / Height Inch 52.79/59.98
Net Weight / Gross Weight Inch 749/816
Gross Volume (with packing) Ft3 56.5



FWS-80 TP2

  Unit FWS 80 TP2
DRUM
Load Capacity 1:9 / 1:10 LB 86/77
Volume Cu. Ft 12
Depth In 33.85
Diameter In 23.7
General Data
Wash speed / Spin speed r.p.m 45/644
G Force – 200
Double Drain   Optional
Weighing System   No
SLUICE OPTION   Yes
DOOR
Height door centre In 28.9/17.3
Diameter In 22
POWER
Motor Hp 5.36
Heating elec. Mod. kW 28.16
Max. Electric Power kW 29.50
Max Steam & Hote Water power kW 5.36
Connections   Electric Steam/Hot Water
Voltage 230V – I + N N° x mm² / A N/A 3×4 – 20 A
Voltage 230V – III N° x mm² / A 4×16 – 63 A N/A
Voltage 400V – III + N N° x mm² / A 5×6 – 40 A N/A
Steam Inlet Inch ¾”
Maximum Steam Consumption Lbs/hr 39.68
Water inlet Inch ¾”
Grid Pressure Kg/cm² 2-4
Max water consumption * Gal/hr 52.72
Drain Inch 3”
Drain Capacity Gal/min 52.8
Dimensions/ With Packaging
Width / Width Inch 38.54/41.33
Depth / Depth Inch 41.96/49.81
Height / Height Inch 55.55/63
Net Weight / Gross Weight Inch 1043/1109
Gross Volume (with packing) Ft3 56.5

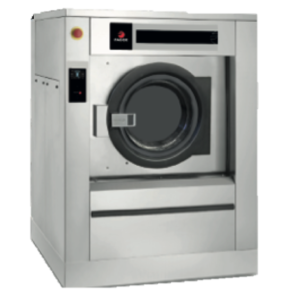

FWS-135 TP2

  Unit FWS 135 TP2
DRUM
Load Capacity 1:9 / 1:10 LB 148/132
Volume Cu. Ft 21
Depth In 41.26
Diameter In 26.92
General Data
Wash speed / Spin speed r.p.m 42.5/505
G Force – 150
Double Drain   Optional
Weighing System   No
SLUICE OPTION   No
DOOR
Height door centre In 35.43/21.26
Diameter In 22.05
POWER
Motor Hp 10
Heating elec. Mod. kW
Max. Electric Power kW
Max Steam & Hote Water power kW
Connections   Electric Steam/Hot Water
Voltage 230V – I + N N° x mm² / A N/A N/A
Voltage 230V – III N° x mm² / A 4×25 – 100A 4×10 – 50A
Voltage 400V – III + N N° x mm² / A 5×16 – 63A 5×4 – 32A
Steam Inlet Inch ¾”
Maximum Steam Consumption Lbs/hr 39.68
Water inlet Inch ¾”
Grid Pressure Kg/cm² 2-4
Max water consumption * Gal/hr 165.87
Drain Inch 3”
Drain Capacity Gal/min 52.8
Dimensions/ With Packaging
Width / Width Inch 48.25/53.54
Depth / Depth Inch 50.35/58.16
Height / Height Inch 64.56/74
Net Weight / Gross Weight Inch 2050/2314
Gross Volume (with packing) Ft3 131.72
