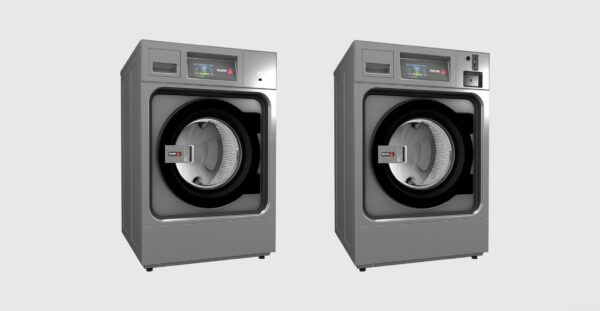

Fagor LAP Models- Compact Washer- 22lb Washer 450G GRAVITY DRAIN

$5,968.00

  • New TP2 scheduler with touch screen. It allows to create an indefinite number of programs (26 preestablished).
  • Allows programming, importing or exporting programs and software updates via USB.
  • Standard traceability:
    The entire washing process (temperatures, water levels) is stored in the washing machine and can be extracted to a PC via USB memory.
  • WET CLEANING included in the scheduler (modifiable water levels and washing speed).
  • Wash-Control, PC software for program management, traceability and other data.
  • Designed for remote connections.
  • Designed for multipayment system.
  • 8 programmable automatic liquid dosing signals with timedelay element. With a choice of 6 extra signals.
  • Reduced washing cycles (heating power 6 kW).
  • Gray skinplate.
  • Tank, drum and blades made of AISI 304.
  • Robust door made of aluminum.
  • Industrial door lock machine door seal (no inner drum seal).
  • Industrial housing and bearings.
  • Frequency converter and industrial motor.
  • New possibility to customize the machines from factory with the available options.
  • OPL COIN
  • Convertible models from self-service to OPL and vice versa.
  • ONE UNIT COLUMN Standard model easily installable in column.
  • ELECTRIC HOT WATER Standard electric model easily convertible to hot water model and vice versa.
  • DRAIN VALVE DRAIN PUMP Standard models easily convertible. Easy access for maintenance.
  • Intelligent and manual weighing system. Automatic adjustment of water and chemicals.
  • Possibility of configuring three levels of savings.
  • High Factor G 450. Reduced residual humidity Reduces drying time.
  • Designed for use with tanks for water recovery.
  • LAP-1025 Spec Sheet
#000000
SKU: LAP-1025 TP2 HW V DS SSC (Soap Box on Top) Category:

Description

CALL FOR PRICING AND AVAILABILITY

Spec Sheet

CHARACTERISTICS

  • –  Soft-mount, High-spinning washer.
  • –  2 standard water inlets.
  • –  Equipped with a frequency inverter (standard 50-60 Hz). Balancing system controlled by the same inverter.
  • –  Available with drain valve (V) or drain pump (P).
  • –  Includes levelers.
  • –  Drain normally closed “NC” (In case of power failure, the water stays inside the tank.)
  • –  Tank with 4 detergent compartments.
  • –  OPTIONS
  • –  Double drain (only valve model).
  • –  Drain pump kit.
  • –  6 extra signals for dosing.
  • –  Silicone door seal.
  • –  Door with opposite opening.
  • –  Delayed door opening.
  • –  Plinth.
  • –  Mop plinth w/filter (valve model).
  • –  Front or Top soap dispenser.

Front Dispenser

Top Dispenser

PROFESSIONAL WASHER EX–TRACTORS

PROFESSIONAL LAUNDRY

MORE ROBUSTNESS – Elegant skinplate panels.

– Tank, drum and blades made of SS AISI 304.

– Robust door made of aluminum.

– Industrial door lock.
– No inner drum seal.
– Industrial housing and bearings. – Frequency inverter
– Industrial grade motor.

INDUSTRIAL LAUNDRY

01.

MORE FEATURES

  • –  New TP2 programmer with touch screen. It allows to create an indefinite number of programs (26 preestablished).
  • –  Allows importing or exporting programs and software updates via USB.
  • –  Standard traceability:
    The washing process (temperatures, water levels) is stored and can be extracted to a PC via USB.
  • –  Wash-Control, PC software for program management, traceability and other data.
  • –  WET CLEANING ready (customize water levels and washing speed).
  • –  Remote connection capability.
  • –  Designed for multipayment

    system.

  • –  8 programmable automatic liquid dosing signals with timedelay element. With a choice of 6 extra signals.
  • –  Reduced washing cycles (heating power 6 kW).

    – Voltage 110-120V 1N 50/60 Hz.

0.2

MORE EFFICIENCY

– Intelligent and manual weighing system. Automatic adjustment of water and chemicals.

– Three levels of savings.
– High Spin Factor up to 450G.

Reduces residual humidity and drying time

– Designed for use with water recovery tanks .

03.

04.

MORE VERSATILITY

– OPL COIN
Convertible from OPL to Vended, and vice versa.

– STACKABLE
Models with front soap box

– ELECTRIC HOT WATER Standard electric model easily convertible to hot water model and vice versa.

– DRAIN VALVE DRAIN PUMP Easily convertible. Easy access
for maintenance.

– TOP SOAP BOX
Available with robust top soap dispenser (recommended for vended laundry).



Additional information

Weight 365 lbs
Dimensions 48 × 65 × 72 in
