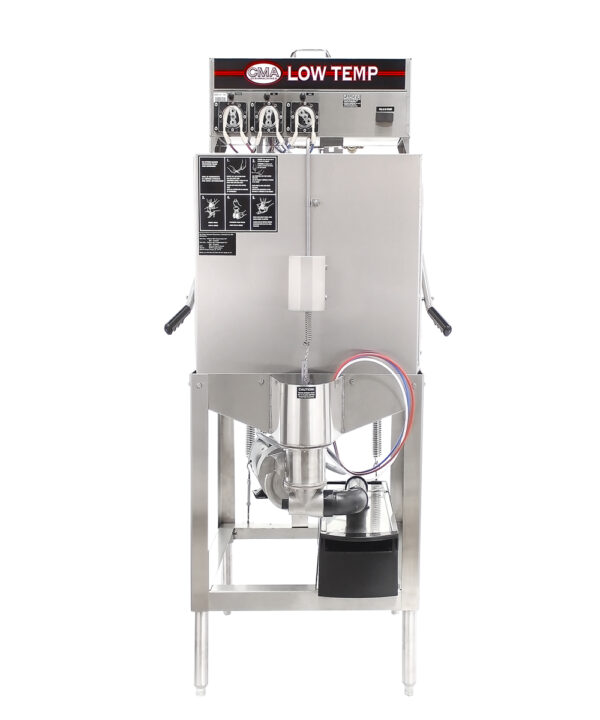

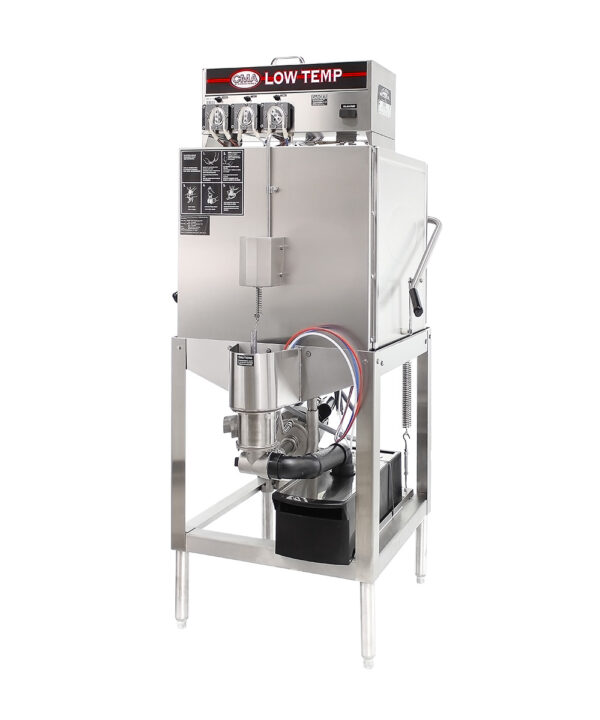

AH Straight Low Temp Dishmachine


SKU: 01632.02 Category:


Single rack, straight-through design. Features all stainless steel construction, chemical pumps, priming switches, top mounted controls, automatic start/stop, pump purging system, delimer switch and a Poly Pro scrap accumulator. Produces 40 racks/hour and has a 17” maximum dish clearance.

• 40 racks / 160 covers per hour.

• All stainless steel construction assures long life and years of trouble free operation.

• Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps.

• Top mounted controls include built-in chemical pumps and deliming system that assures proper chemical usage.

• Auto start/stop makes operation safe and easy.

• Integrated scrap tray prevents food soil from entering drain system.

• Water inlet comes with built-in strainer, prevents debris from clogging the water valve.

• Dishmachine comes with 2 dishracks. • Stainless steel impeller offers extended life and service.

• Stainless Steel scrap tray, long lasting.

Product Spec Sheets_


Width 25 3/4 Inches
Depth 25 3/4 Inches
Height 56 – 57 Inches
Dishwasher Height Standard
Amps 16 Amps
Hertz 60 Hertz
Phase 1 Phase
Voltage 115 Volts
Booster Heater Included No
Chemical Pumps Included Yes
Dishwasher Style Straight
High or Low Temp Low Temp
Horsepower 1 HP
Interior Clearance 17 Inches
Made in America Yes
NSF Listed Yes
Number of Cycles 1 Cycle
Racks Per Hour 40
Type Single Rack
Wash Cycle Time 90 Seconds
Wash Tank Capacity 1.7 gal.
Water Inlet Size 3/4 Inches
Water Temperature 120 – 140 Degrees F
Water Usage 1.7 Gallons Per Rack

Wiring Diagrams_

Wiring Diagrams_ (1)


Additional information

Weight 260 lbs
Dimensions 41 × 41 × 66 in
