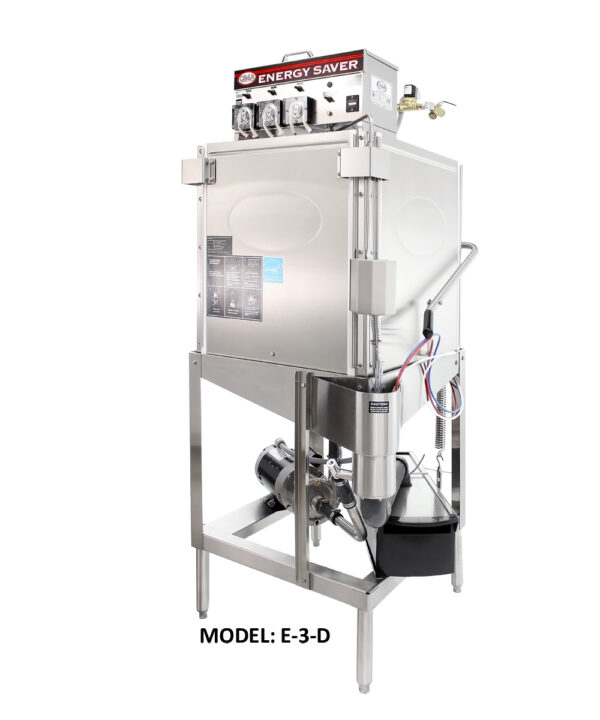

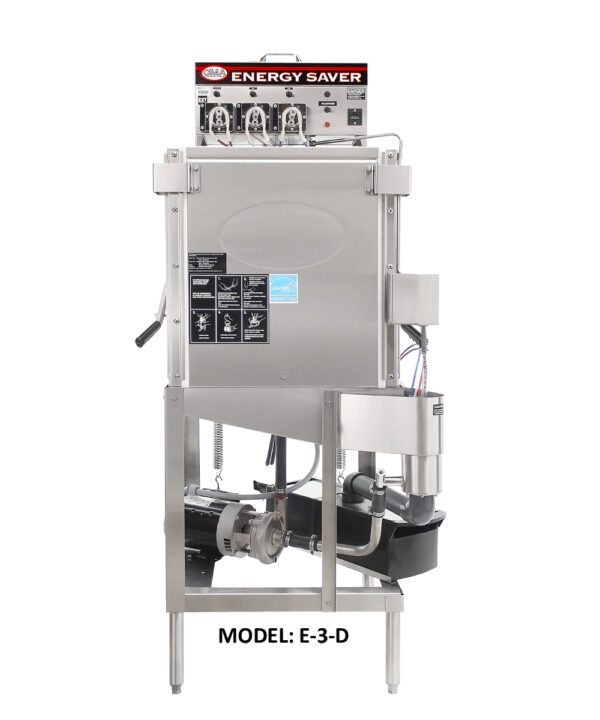

E-3-D 3-Door Ext Extended Low Temp DishMachine


E-3-D 3-Door Ext Extended Low Temp DishMachine Free Shipping 115V/60Hz/1Ph Energy Star

SKU: CMA E-3-D Category:


CMA Dishmachines Details

Single rack, convertible model (straight-through, corner or 3-door). Features include an outside drain sump, chemical pumps, priming switches, top mounted controls, automatic start/stop and a delimer switch. Produces 40 racks/hour and has a 20-1/2” maximum clearance for dishes. Additional available models include: E-AH | E-AH EXT | E-C | E-C EXT | E-3-D | E-3-D EXT.

• 40 racks / 160 covers per hour.

• 20-1/2″ Door opening for maximum clearance.

• Economical to operate. Uses only 1.01 gallons of water per cycle.

• All stainless steel construction assures long life and years of trouble free operation.

• Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps.

• Top mounted controls include built-in chemical pumps and deliming system for dealing with scale.

• Auto start/stop makes operation safe and easy.

• New integrated scrap tray prevents food soil from entering drain system.

• Airgap fill system.Overall Dimensions:
Width: 25 3/4″
Depth: 25 3/4″
Height: 56″ – 57″
Inside Chamber Clearance: 20 1/2″

Quick Installation Guide_

Product Spec Sheets_ (2)

Instruction Manual_

Parts Book_

Width 25 3/4 Inches
Depth 25 3/4 Inches
Height With Doors Open 80-81 Inches
Dishwasher Height Standard
Amps 16 Amps
Hertz 60 Hertz
Phase 1 Phase
Voltage 115 Volts
Booster Heater Included No
Chemical Pumps Included Yes
Dishwasher Style Straight / Corner
Energy Star Qualified Yes
High or Low Temp Low Temp
Horsepower 1 HP
Interior Clearance 20 1/2 Inches
Made in America Yes
Number of Cycles 1 Cycle
Racks Per Hour 40
Type Single Rack
Wash Cycle Time 90 Seconds
Wash Tank Capacity 1.09 gal.
Water Inlet Size 1/2 Inches
Water Temperature 120 – 140 Degrees F
Water Usage 1.01 Gallons Per Rack


All Dishmachines ship from manufacturer. So confirm leads times prior to ordering if needed Asap. We do at times have some in stock. Lead times are usually shipped in a few days.

Additional information

Weight 266 lbs
Dimensions 41 × 41 × 80 in
